Primo® XM Plus

Standard seat with mechanical suspension.

Back

Product Description

This model’s low-constructed mechanical suspension with 80 mm of travel features an easily accessible ratcheting handle for optimal adjustment to the driver’s weight. Safe, ergonomic sitting is also ideally enabled by a new, comfortable 520 mm-wide seat cushion. The seat meets the latest safety requirements and is equipped with a seat and belt contact switch as well as a duosensitive ELR-belt system with orange belt straps as standard. Additionally, the Primo XM Plus features an individually adjustable, mechanical lumbar support.

Product Features

Mechanical suspension
Mechanical lumbar support
Manual weight adjustment
Download Document Download
Grammer_primo_xm_plus_datasheet_en
pdf
2,213,161 KB
Download

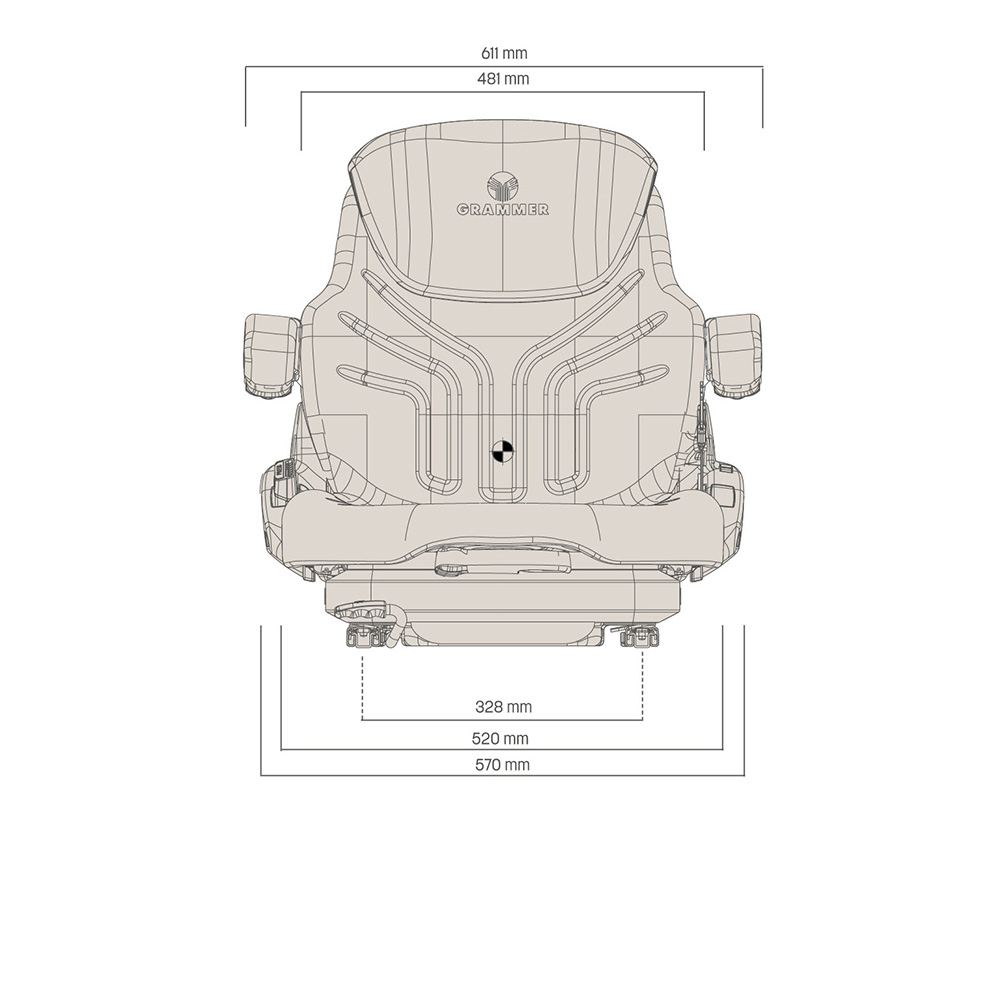

Grammer_primo_xm_plus_drawing_1_en
jpg
135,076 KB
Download

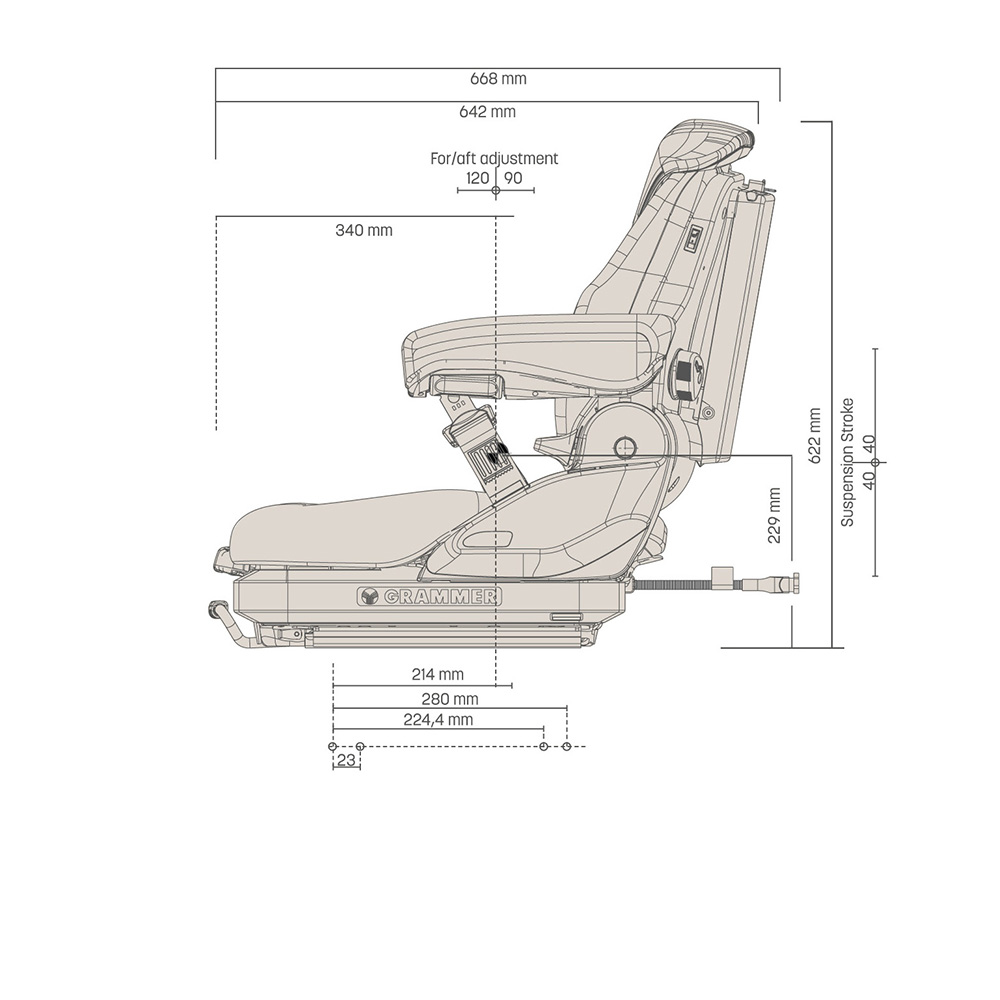

Grammer_primo_xm_plus_drawing_2_en
jpg
144,027 KB
Download
Grammer_primo_xm_plus_manual
pdf
2,897,106 KB
Download
Grammer_primo_brochure_en
pdf
9,924,036 KB
Download
